RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

Name: RD350R35 396 300V 10A PCB Screw Terminal Block Pin Header Tin Coated
Brand: KEFA RD no mark
Price: 0.12 USD

Buy cheap RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated product

Place of Origin : China

Brand Name : KEFA RD no mark

Certification : CE ROHS ul

Model Number : 2-24P

MOQ : Negotiation

Price : 0.12

Packaging Details : 200pcs per inner box

Delivery Time : 2-5 days after receive deposit

Payment Terms : T/T

Supply Ability : 20000/days

payment : tt

sample : free

mold : current mold

servise : OEM ODM

Contact Now

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

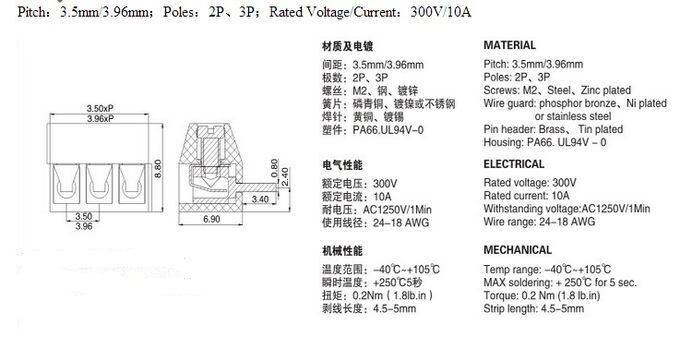

Material:
Pitch:3.5 3.96mm
Poles: 2P, 3P
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC2000V/1min
Wire range: 24-18 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.2Nm(1.8 lb in)
Strip length: 4.5-5mm
contact daisyzhou_003 at 163.com

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

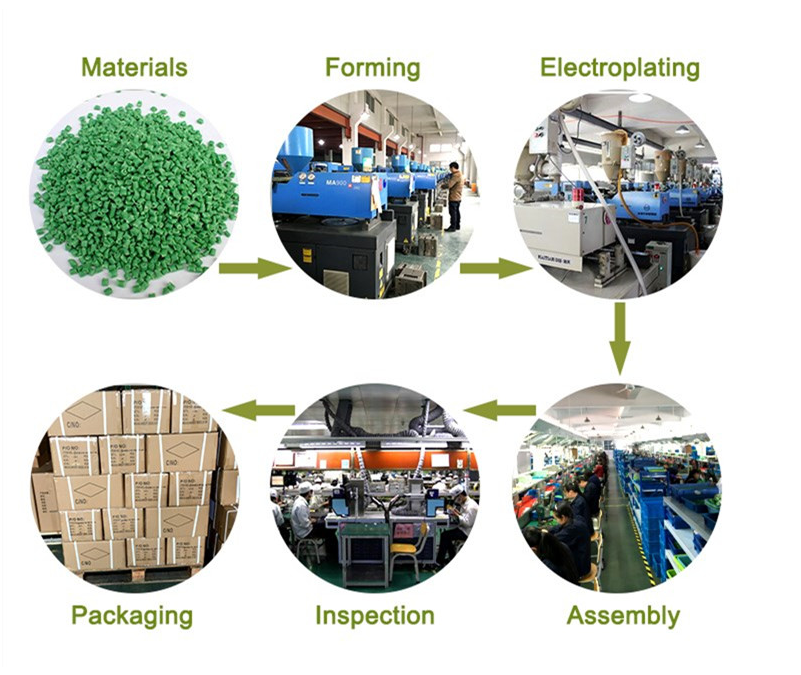

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.

RD350R-3.5 3.96 300V 10A PCB Screw Terminal Block Pin Header Tin Coated

Product Tags:

pcb mount screw terminal

pcb mount screw terminal block
