Name: 13946P SM6P HXW6A 551000670 DVOPM20010 SM6P Plug Servo Motor Connectors SM 6P Or 10P
Brand: NO MARK
Price: 1 USD

Brand Name : NO MARK

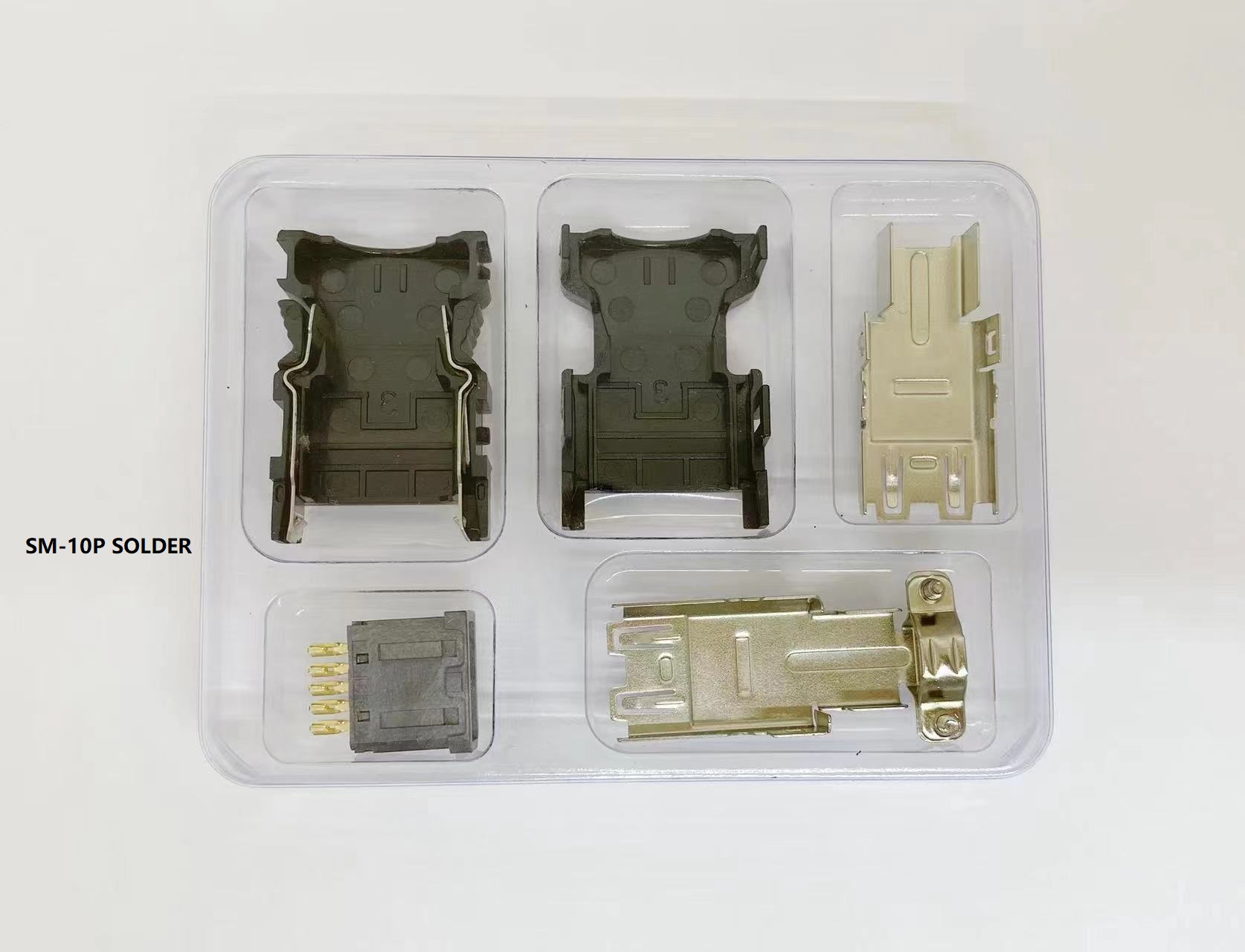

Model Number : SM-10P SOLDER TYPE

Certification : CE

Place of Origin : CHINA

MOQ : 30

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 5-8 days

Packaging Details : 1 full set in a mini plastic box 200pcs in a box

Contact Now

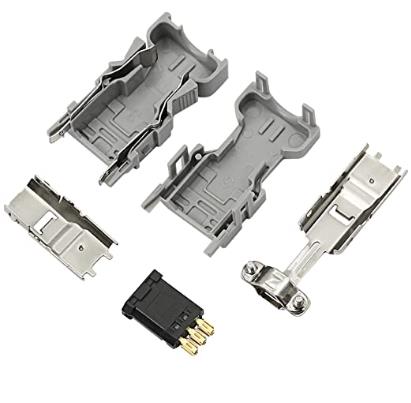

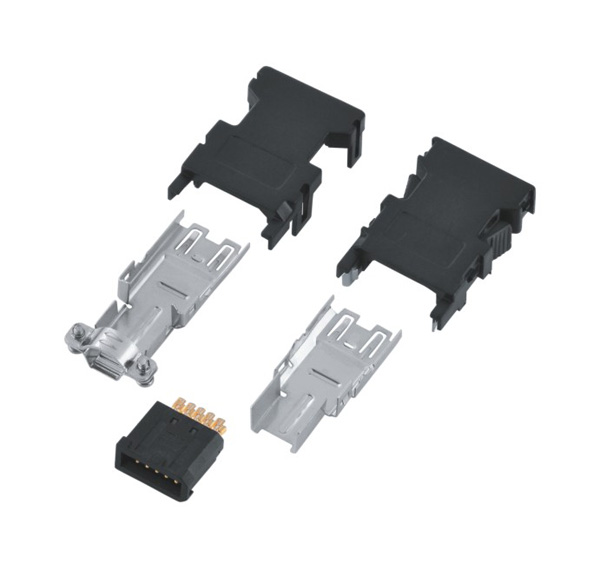

Plastic Metal Servo Motor Connectors SM - 6P Or 10P More PIN Storage;

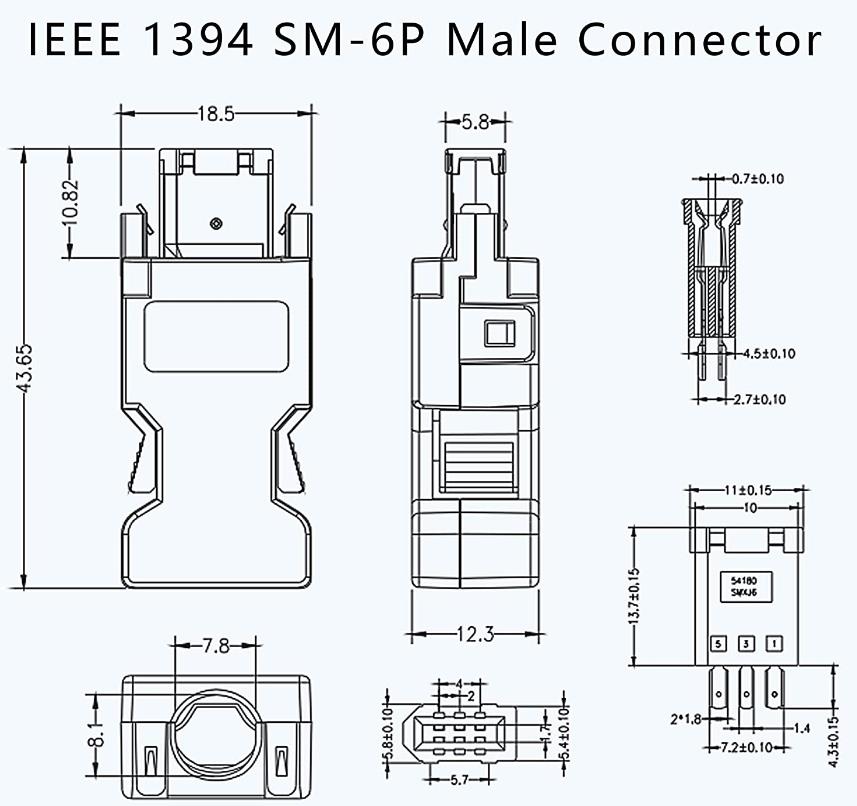

IEEE 1394 SM-6P Plug Servo Motor Connectors SM - 6P Or 10P Male And Female Parts

Product name:IEEE 1394 SM-6P solder joint plug

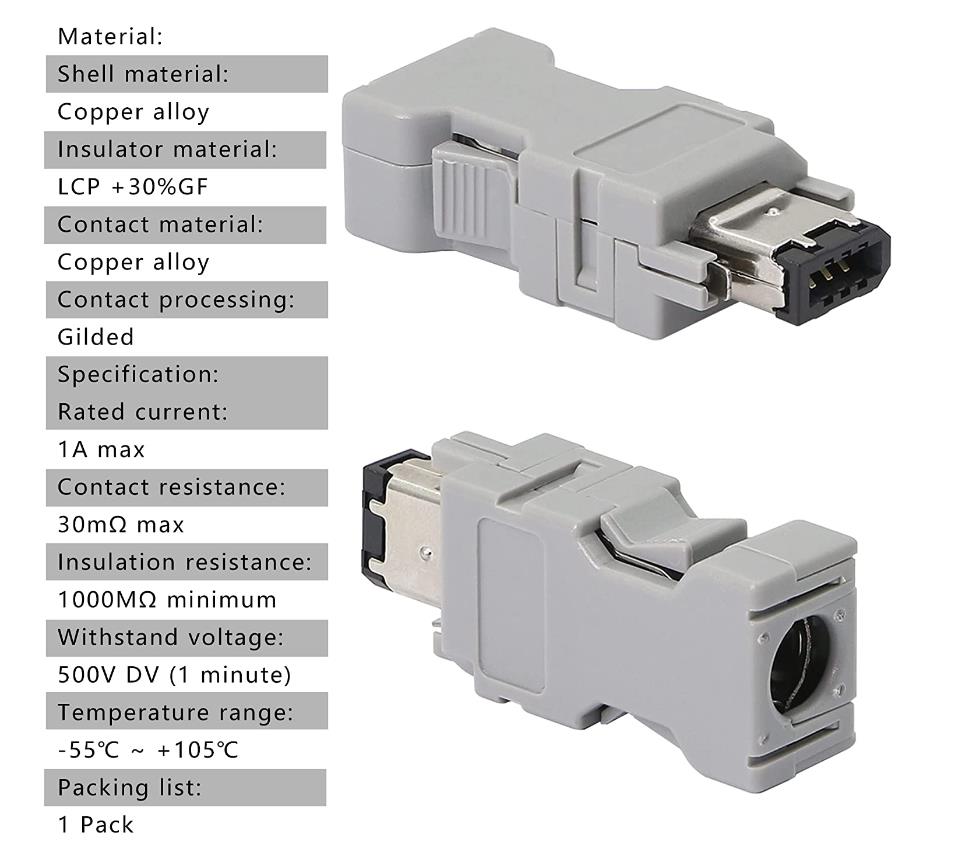

Material: Shell material:Copper alloy Insulator material:LCP +30%GF Contact material:Copper alloy Contact processing:Gilded
Specification: Rated current:1A max Contact resistance:30mΩ max Insulation resistance:1000MΩ minimum Withstand voltage:500V DV (1 minute) Temperature range:-55℃ ~ +105℃
Packing list:1 Pack
360 pack in a full carton; carton size: 59x23x29cm, Weight in 6kgs; valum weight in 7kgs;

1394-6P SM-6P HXW-6A 55100-0670 DVOPM20010 SM-6P Plug Servo Motor Connectors SM - 6P Or 10P

1394-6P SM-6P HXW-6A 55100-0670 DVOPM20010 SM-6P Plug Servo Motor Connectors SM - 6P Or 10P P

Supply SM-6P SM-10P SM-14P SM-26P SM-50P So on many itmes and many servo connectors
